Supplier
DERMALOG Identification Systems GmbH

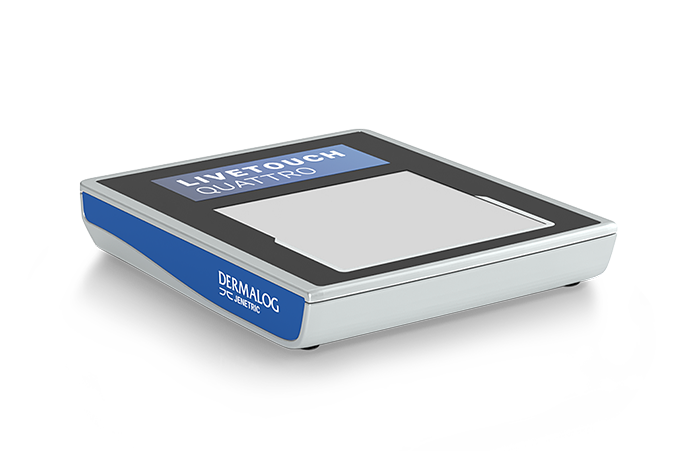

LiveTouch Quattro
FBI Appendix F ten-print scanner with on-device touchscreen guidance
Pricing
Request a quote for current pricing, lead time and delivery to your airport.The DERMALOG LiveTouch Quattro is a slim 4-4-2 ten-print and rolled fingerprint scanner with an on-device touchscreen providing real-time, dynamic user feedback, plus electronic signature capture. It is FBI EBTS Appendix F and BSI TR-03121 certified at FAP 60, with optional antimicrobial coating and a scratch-resistant glass protection layer. Lightweight (0.36 kg) for desktop enrolment.
Specs at a glance
Technical specifications.
| Capture modes | flat (4-4-2) and rolled fingerprints plus electronic signatures |
| Image resolution 500 dpi; scan area 81.3 mm x 76.2 mm; fingerprint window 86 mm x 84 mm | |
| Image quality certification | FBI EBTS Appendix F, BSI TR-03121, ID Flats, ten-print, Mobile ID FAP 60 |
| On-device touchscreen with real-time dynamic user feedback | |
| Dimensions 24 mm x 125 mm x 147 mm; weight 0.36 kg | |
| Interface USB 3.0 / 2.0; power via USB 3.0 (5 V, 900 mA) or external supply for USB 2.0 | |
| Ingress protection IP54; optional antimicrobial coating; glass scratch protection (DIN EN ISO 6507-1, DIN 55654) | |
| Certifications | FBI, BSI, WHQL, CE, FCC, UL, RoHS; OS Windows 7/8.1/10/11 |
Best for
Use cases.
- ›Border control and immigration enrolment
- ›Biometric ID and passport issuing
- ›Police AFIS
- ›Banking / KYC enrolment desks
