Supplier
Hubtex Maschinenbau Gmbh And Co Kg
Ground Support Equipment (GSE)
HUBTEX FLUX Multidirectional Counterbalance Forklift
2-in-1 electric forklift and sideloader in compact dimensions
Specs verified against manufacturer documentation
Pricing

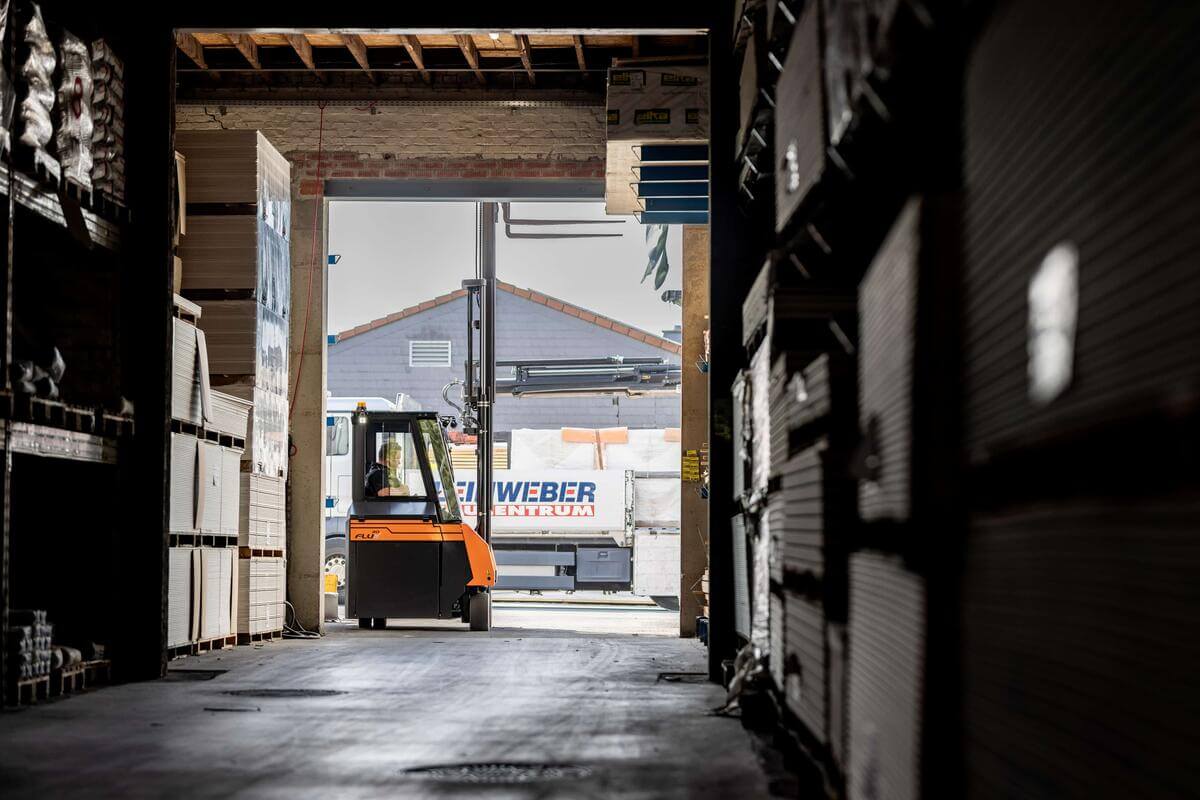

Request a quote for current pricing, lead time and delivery to your airport.The FLUX is HUBTEX's electric multidirectional counterbalance forklift that works as both a conventional counterbalanced forklift and a sideloader in one vehicle, combining compact dimensions with high load capacity. Models in the range carry from 3.0 t (FLUX 30) up to 7.0 t (FLUX 70), with a low-noise, low-maintenance electric drive and a lift mast with tilt function on the FLUX 30 and FLUX 45. It suits loading/unloading trucks as a counterbalance forklift and carrying long loads through narrow doors as a multidirectional forklift.
From the manufacturer’s documentation
Technical specifications.
| FLUX 30 | load capacity 3.0 t, lift height up to 7,500 mm, fork length 1,200 mm, frame length 1,550 mm, max speed 12 km/h, residual capacity up to 1.5 t at 7.5 m lift |
| FLUX 45 | load capacity 4.0 t, lift height up to 7,500 mm, fork length 1,200 mm, frame length 2,500 mm, max speed 12 km/h, residual capacity up to 4.4 t at 7.5 m lift |
| Range spans 3.0 t (FLUX 30) to 7.0 t (FLUX 70) | |
| Lift height up to 7,500 mm across the range | |
| EL or PU soft tyres | |
| Electric drive; lift-mast tilt function on FLUX 30 and FLUX 45 | |
Best for
Use cases.
- ›Loading and unloading trucks as a counterbalance forklift
- ›Carrying long loads through narrow warehouse doors as a multidirectional forklift
- ›Flexible 2-in-1 handling in space-constrained operations
