Basic Baggage Gripper
Ergonomic vacuum baggage gripper that replaces manual bag lifting

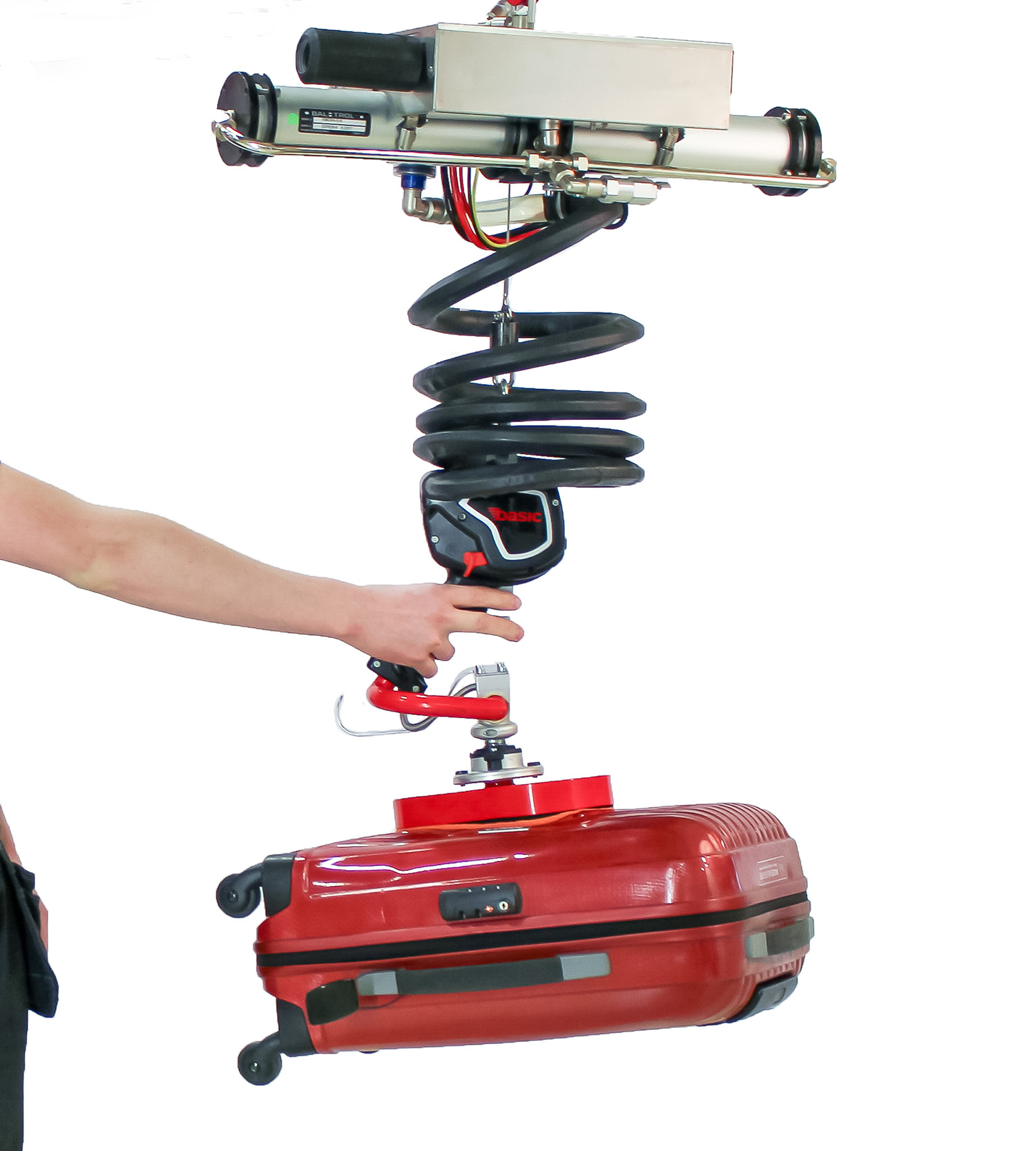

The Basic Baggage Gripper is an all-purpose vacuum lifting device for airport baggage handling where speed and smoothness are needed, frequently used at both large and small airports to lift bags from open carts onto conveyor belts. It grips using suction cups or a hook, and as soon as it touches a surface it locks into place ready to lift. Proportional speed buttons give controlled lifting, endless load rotation allows precise positioning, and safety features prevent lifting without adequate vacuum — eliminating awkward manual lifting and reducing repetitive-strain injuries.
Technical specifications.
| Maximum capacity | 50 kg |
| Gripping technique | vacuum (suction cups) or hook |
| Tool weight | 13.5 kg (variant up to ~16.7 kg) |
| Height options | 1143 mm or 671 mm |
| Stroke length | 1500 mm |
| Bal-Trol suspension | horizontal SM or vertical |
| Endless (continuous) load rotation | |
| Ambidextrous ergonomic handle, fits all hand sizes | |
Use cases.
- ›Lifting baggage from open carts / dollies onto conveyor belts
- ›Airport check-in and baggage make-up areas
- ›Ergonomic handling to reduce repetitive-strain and work-related injuries
Replacements & compatible alternatives.
Comparable Baggage Handling Systems from other suppliers. Cross-shop on specs — confirm exact fit and compatibility with the supplier before specifying.
