Supplier
Mallaghan
Ground Support Equipment (GSE)
MPL 22 Self-Propelled Maintenance Platform Lift
Compact self-propelled scissor platform for aircraft maintenance access.
Pricing

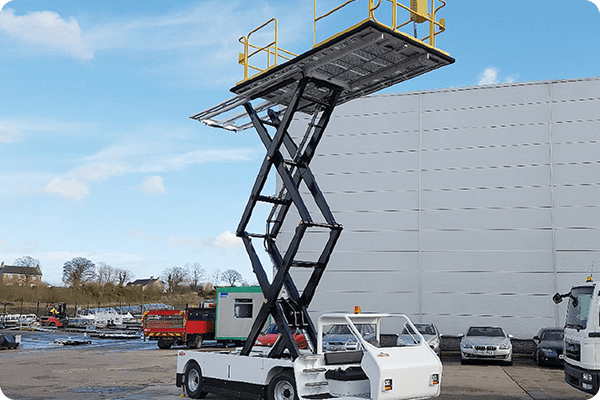

Request a quote for current pricing, lead time and delivery to your airport.The Mallaghan MPL 22 is a self-propelled maintenance platform lift with a small footprint but large capabilities, designed for safe and efficient maintenance tasks across a wide variety of aircraft. It is built on a Mallaghan self-propelled welded chassis with a diesel engine, hydrostatic transmission and an open driver's cab, raising a height-adjustable platform on Mallaghan scissors.
Specs at a glance
Technical specifications.
| Platform floor height 1100 mm / 3.6 ft to 6720 mm / 22 ft | |
| Capacity 1000 kg / 2000 lb | |
| Platform size 2130 mm / 7 ft x 4180 mm / 13.7 ft | |
| Self-propelled Mallaghan-manufactured welded chassis with diesel engine and hydrostatic transmission | |
| Mallaghan scissors with built-in hydraulic cylinders and chassis stabilisers | |
| 12/24V relay or PLC computer electric system | |
| Fully IATA compliant | |
| Options | platform traverse above driver cab, removable handrails, shore power and air-line outlets on platform |
Best for
Use cases.
- ›Line and base maintenance access to aircraft fuselage, wings and tail
- ›Cabin and fuselage servicing requiring an elevated working platform
- ›Maintenance fleets for MRO providers, airlines and airports
