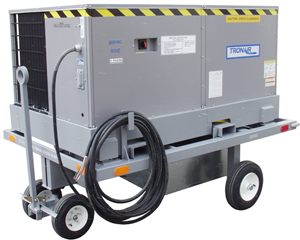

Tronair 17-7503B7000 4-Ton Electric Ground Air Conditioner
208V single-phase 4-ton mobile ground air conditioner for cabin pre-cooling.
Pricing
Request a quote for current pricing, lead time and delivery to your airport.A Tronair 4-ton mobile aircraft ground air conditioner distributed by PJi, designed to cool (and optionally heat) an aircraft cabin through a window or door opening for ground-based climate control and servicing. It runs on 208V single-phase 60 Hz utility power with a belt-driven hermetic compressor protected against overcurrent and overtemperature, and meets the ASHRAE 62-89 indoor air quality standard via a non-corrosive sloped condensation drain pan. An optional 8.7 kW heater configuration is available.
Specs at a glance
Technical specifications.
| Cooling capacity | 45,000 BTU/hr output |
| Input voltage | 208V single-phase, 60 Hz |
| Max air flow | 1,600 CFM |
| Condenser fan | 1,200-2,000 CFM propeller type |
| 115V GFI external AC utility outlet with 15A fuse and switch | |
| Belt-driven hermetic compressor with over-current/over-temperature protection | |
| Meets ASHRAE 62-89 (IAQ) standard | |
| Optional 8.7 kW heater, 29,700 BTU/hr max (model 17A7503-7000) | |
Best for
Use cases.
- ›Pre-cooling aircraft cabins before passenger boarding
- ›Ground-based cabin climate control during ramp or maintenance operations
- ›Hangar and FBO aircraft servicing requiring portable cooling
- ›Cabin temperature control for corporate and regional aircraft
