Supplier
SIYUANS AVIATION TECH CO.,LTD

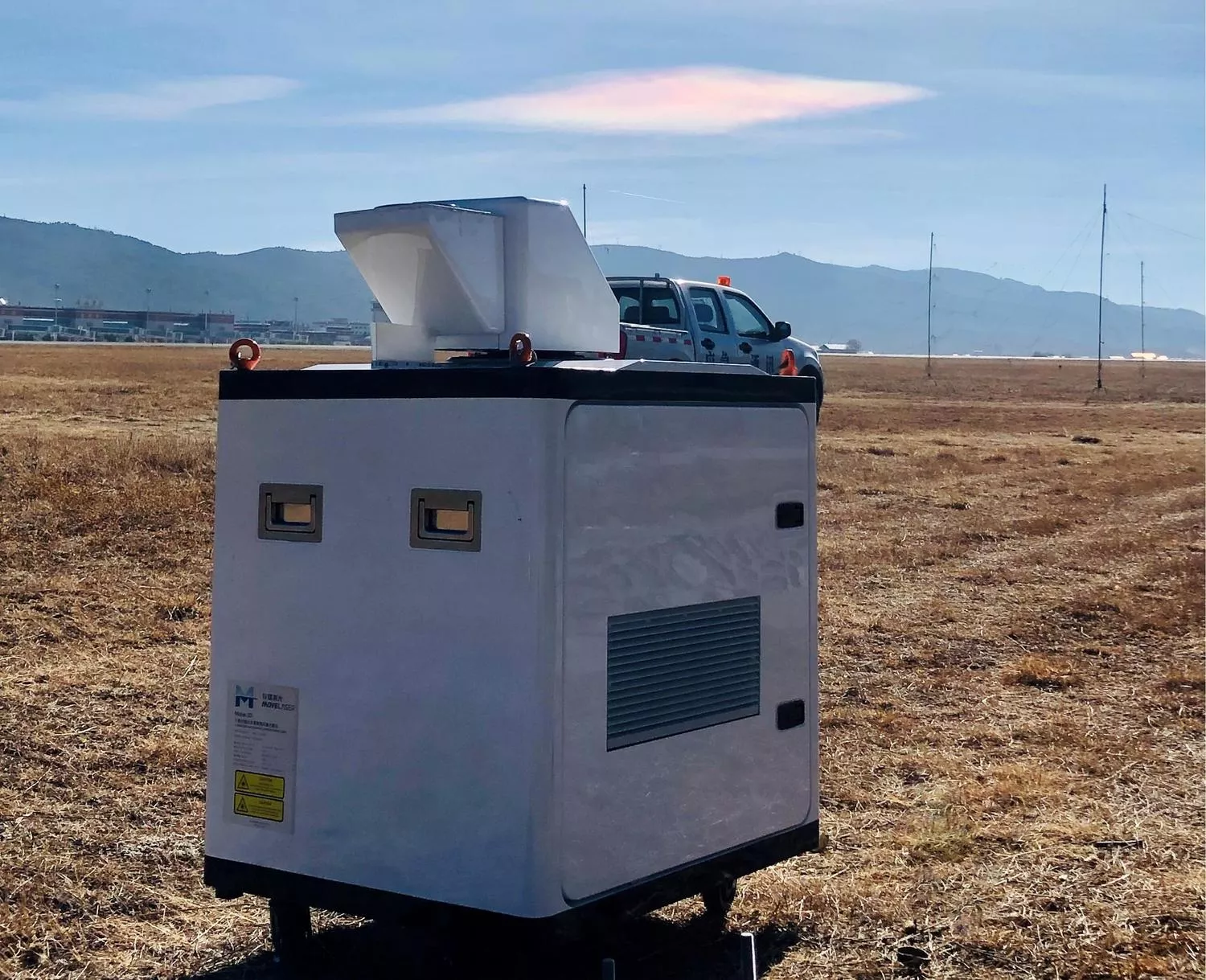

Lidar Windshear Alert System
Doppler lidar measuring low-altitude wind fields and alerting on windshear around airports.
Pricing
Request a quote for current pricing, lead time and delivery to your airport.The Lidar Windshear Alert System integrates lidar, meteorology and air-traffic-control technologies to monitor wind fields around airports and calculate low-altitude windshear with real-time alerting for departing and arriving aircraft. It uses Doppler laser detection of aerosol backscatter, where the frequency shift of the returned signal is proportional to wind velocity, enabling 3D wind speed and direction measurement.
Specs at a glance
Technical specifications.
| Pointing accuracy | 0.01 deg |
| Wind-speed accuracy | 0.1 m/s |
| Detection below 600 m height | |
| Scan modes | PPI/RHI/DBS and programmable arbitrary scanning |
| 3D refined wind-field measurement with up to 300 custom distance layers | |
| Multiple distance-resolution and accumulation-time settings | |
| Doppler laser / aerosol-backscatter detection principle | |
Best for
Use cases.
- ›Takeoff and landing safety monitoring
- ›Airport-perimeter wind-field surveillance
- ›Low-altitude windshear detection and real-time alerting
