Surespan Limited

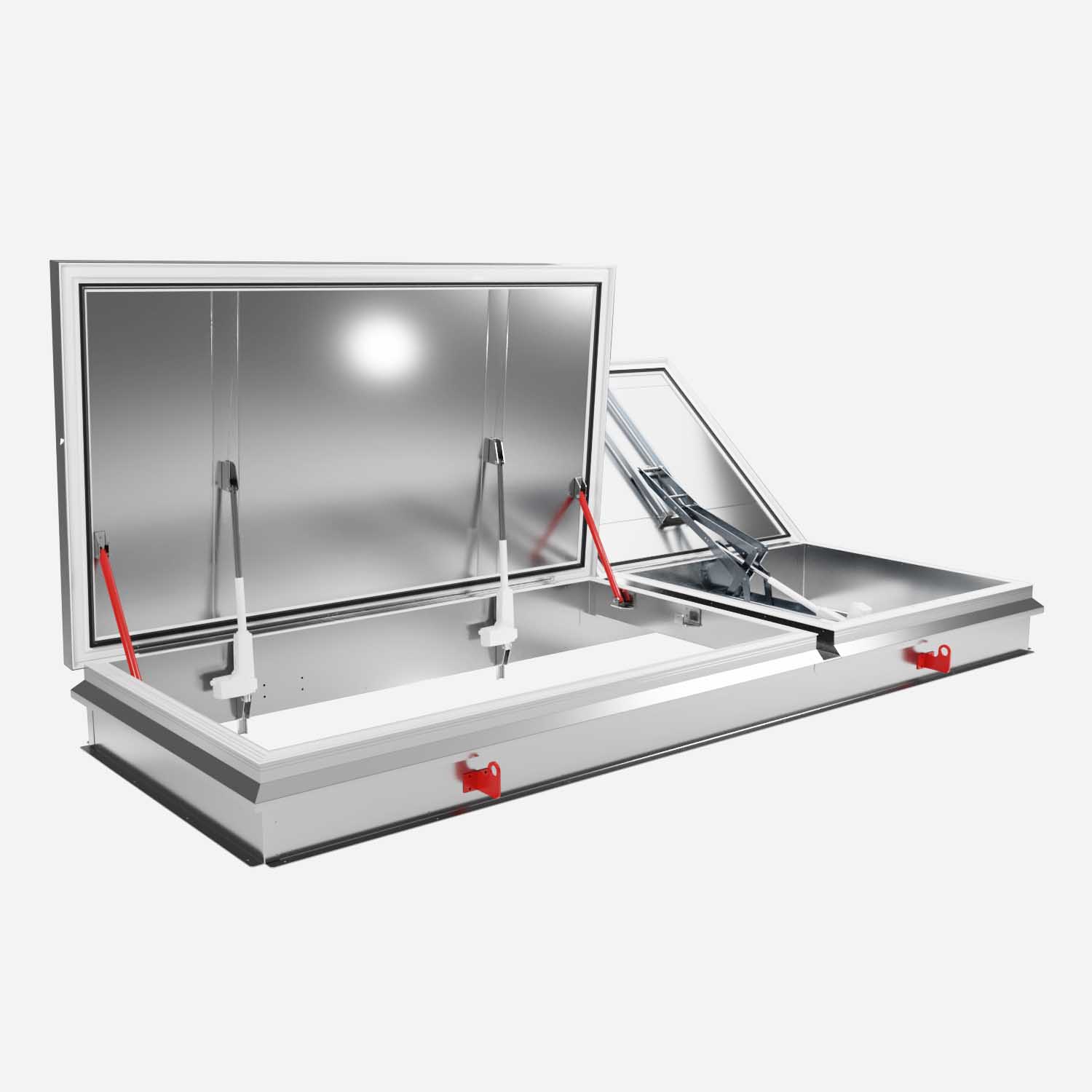

Exi-Vent Smoke Vent / Roof Access Hatch
Combined AOV smoke ventilation and roof access in one thermally broken unit.
Pricing
Request a quote for current pricing, lead time and delivery to your airport.The Exi-Vent is a thermally broken AOV smoke vent and roof access hatch for projects where a combined smoke-vent and access hatch would create compliance limitations. It allows the smoke ventilation and access functions to be independently sized and operated. It is CE marked to EN 12101-2:2003 with a 24V DC actuator and engineered for snow and wind loading.
Specs at a glance
Technical specifications.
| 50 mm polyisocyanurate (PIR) insulation; U-value 0.43 W/m2K (0.63 W/m2K with 300 mm upstand option) | |
| Thermal break | 50 mm composite lid and upstand |
| CE marked to EN 12101-2:2003; wind compliance per EN 12101-2:2003 | |
| Actuator 24V DC / 10A compliant with EN 12101-2 | |
| Installation pitch up to 30 degrees; double unbroken seal; optional aluminium curb liner | |
| Engineered for significant snow loads; bespoke dimensions with optional powder coating | |
Best for
Use cases.
- ›Smoke ventilation plus roof access in one opening
- ›Data centres, healthcare and education buildings
- ›Transport and airport infrastructure
- ›Projects needing separated smoke-vent and access functions
