Supplier
Teledyne ICM
Security Screening

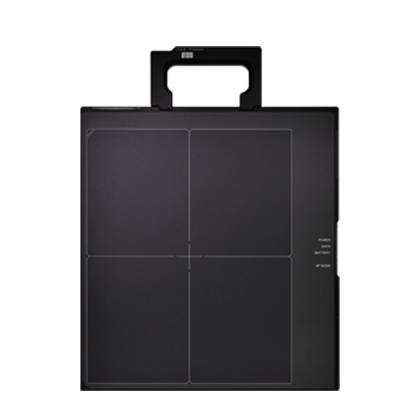

TactXL
Lightweight 2.5 kg portable X-ray detector with a larger 17 x 14 in active area.
Specs verified against manufacturer documentation
Active area
427 x 351 mm (17 x 14 in)
Dead zone
2.8 mm
External dimensions
460 x 384 x 15 mm
Operating temperature
-20 to +50°C
Pricing
Request a quote for current pricing, lead time and delivery to your airport.The TactXL is a lightweight, compact portable X-ray detector weighing 2.5 kg that delivers high-resolution image definition over a larger active area than the TactX. It integrates with Sherlock Security software on tablets and pairs with Teledyne ICM CP120B, CP160B or LiteX generators for rapid field imaging.
From the manufacturer’s documentation
Technical specifications.
| Sensor | aSi, 16-bit dynamic range, 99 µm pixel size, 5.05 lp/mm |
| Active area | 427 x 351 mm (17 x 14 in) |
| Steel penetration | 35 mm (CP120B) / 45 mm (CP160B) |
| Dead zone | 2.8 mm |
| External dimensions | 460 x 384 x 15 mm |
| Weight | 2.5 kg (5 lbs); IP67 waterproof |
| Connectivity | wireless or cable-driven |
| Operating temperature | -20 to +50°C |
Best for
Use cases.
- ›X-ray inspection of larger suspect packages in confined spaces
- ›EOD / IED field operations
- ›Security and border inspection
