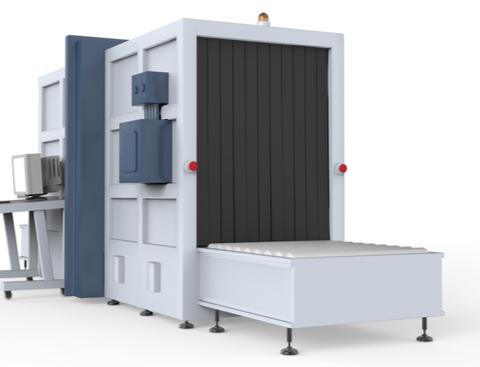

Cargo X-ray Scanner Lead Curtains
Heavy-duty radiation curtains for high-tunnel cargo X-ray scanners.
Pricing
Request a quote for current pricing, lead time and delivery to your airport.Protective curtain strips for cargo X-ray scanners used in airport and shipping-facility security operations. Available as complete replacement sets or individual strips, in large tunnel heights up to 1800mm, with a higher 0.50mm lead-equivalence rating for higher-energy cargo systems.
Specs at a glance
Technical specifications.
| Lead equivalence 0.500mm Pb (±10%), certified to DIN 61331-1 (60-150 kV) | |
| Thickness 2.40mm (±10%) | |
| Weight 7.50 kg/m² | |
| Standard strip width 88mm (custom sizes available) | |
| Material | vinyl matrix with lead-core composite |
| Hardness 40 ±5 Shore A; tensile strength min. 12 MPa | |
| Tunnel heights 1300mm / 1500mm / 1800mm | |
| Lead and lead-free options; pricing approx. US$1,597.50-US$4,597.50 per set | |
Best for
Use cases.
- ›Airport air-cargo and freight X-ray inspection
- ›Sea/land cargo terminal security screening
- ›Logistics-hub palletised-freight scanning
Cross-shop the category
Replacements & compatible alternatives.
Comparable Security Screening from other suppliers. Cross-shop on specs — confirm exact fit and compatibility with the supplier before specifying.
