Supplier
XrayCurtains.com
Security Screening

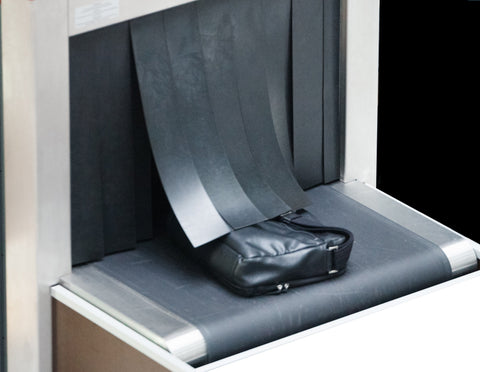

Checkpoint X-ray Scanner Lead Curtains
Replacement radiation-shielding curtain strips for checkpoint X-ray scanners.
Pricing
Request a quote for current pricing, lead time and delivery to your airport.Lead and lead-free curtain strips designed for checkpoint X-ray scanners used in security screening. Available as full replacement sets or individual strips in three standard tunnel heights (360mm, 430mm, 550mm), with 88mm standard strip width and custom widths on request.
Specs at a glance
Technical specifications.
| Lead equivalence 0.35mm Pb, certified to DIN 61331-1 (60-150 kV) | |
| Thickness 2.40mm (±10%) | |
| Weight 6.00 kg/m² | |
| Standard strip width 88mm (custom available) | |
| Material | rubber matrix with synthetic fabric layer and lead-core composite |
| Hardness 60 ±5 Shore A; tensile strength min. 12 MPa | |
| Tunnel heights 360mm / 430mm / 550mm | |
| Lead and lead-free versions; pricing from approx. US$741 (10-strip pack) to US$2,680.50 (550mm full set) | |
Best for
Use cases.
- ›Airport passenger-checkpoint X-ray screening
- ›Government building and embassy security checkpoints
- ›Corporate office and school entrance screening
