MICALERT Microphonic Rigid Fence Sensor Cable
Passive microphonic sensor cable for rigid metal fences — palisade, ornamental iron and welded panels.
MICALERT is a passive microphonic intrusion detection system engineered for rigid metal fences where standard vibration cables underperform — palisade, ornamental, wrought-iron, aluminum and welded metal fencing. The sensor cable acts as a distributed microphone attached directly to the fence without any conduit: the analyzer senses the frequency signatures generated by cutting, climbing or forcing the fence while filtering those produced by weather. The system self-calibrates, and per-zone sensitivity is adjustable across 22 on-board levels or 500 levels via software. The 3 mm UV-rated black cable ships in pre-cut 75 m, 152 m and 305 m (250, 500 and 1,000 ft) lengths, with each LPU-402 fence processor monitoring up to 600 m (2,000 ft) of cable across two zones — up to 300 m (1,000 ft) per zone. Six ready-to-install kit configurations (RB-MIC1Z250 through RB-MIC2Z1000) pair the fence processor with sensor cable and two end-of-line units in single- or dual-zone layouts; no training, special tools or certification are required, an installation manual is included, and the sensor cable is maintenance-free with a two-year warranty. The analyzer accepts 2-4 sensor cable inputs plus four supervised accessory inputs (gate magnets, contacts, microwave, motion detectors) and a tamper switch, and provides eight configurable NO/NC dry-contact relay outputs rated 1 A @ 12 VDC plus dedicated tamper and power-outage relays, so it retrofits to any alarm panel or DVR without protocol work. Communication to a PC is via USB-C with optional RS485 or IP. Two-layer surge protection with gas discharge devices on all inputs, outputs and communication lines guards against lightning. Electronics are housed in a NEMA 4X / IP-66 enclosure (24 x 19.5 x 7 cm, 1 kg) rated -40°C to +105°C and up to 98% non-condensing humidity, powered from 12-24 VDC at 300 mA. Accessories include stainless-steel cable ties with installation tools, end-of-line terminations, weatherproof splice/extension units, gate connectors and a sliding-gate kit. RBtec positions MICALERT for commercial and industrial areas, houses and estates, data centers, solar farms and photovoltaic plants, vehicle and equipment storage areas, radio/cellular/communication antenna sites, self-storage facilities, and for combination with crash-rated fencing.
Technical specifications.
| Detection principle | Passive microphonic sensor cable with frequency-discrimination algorithm |

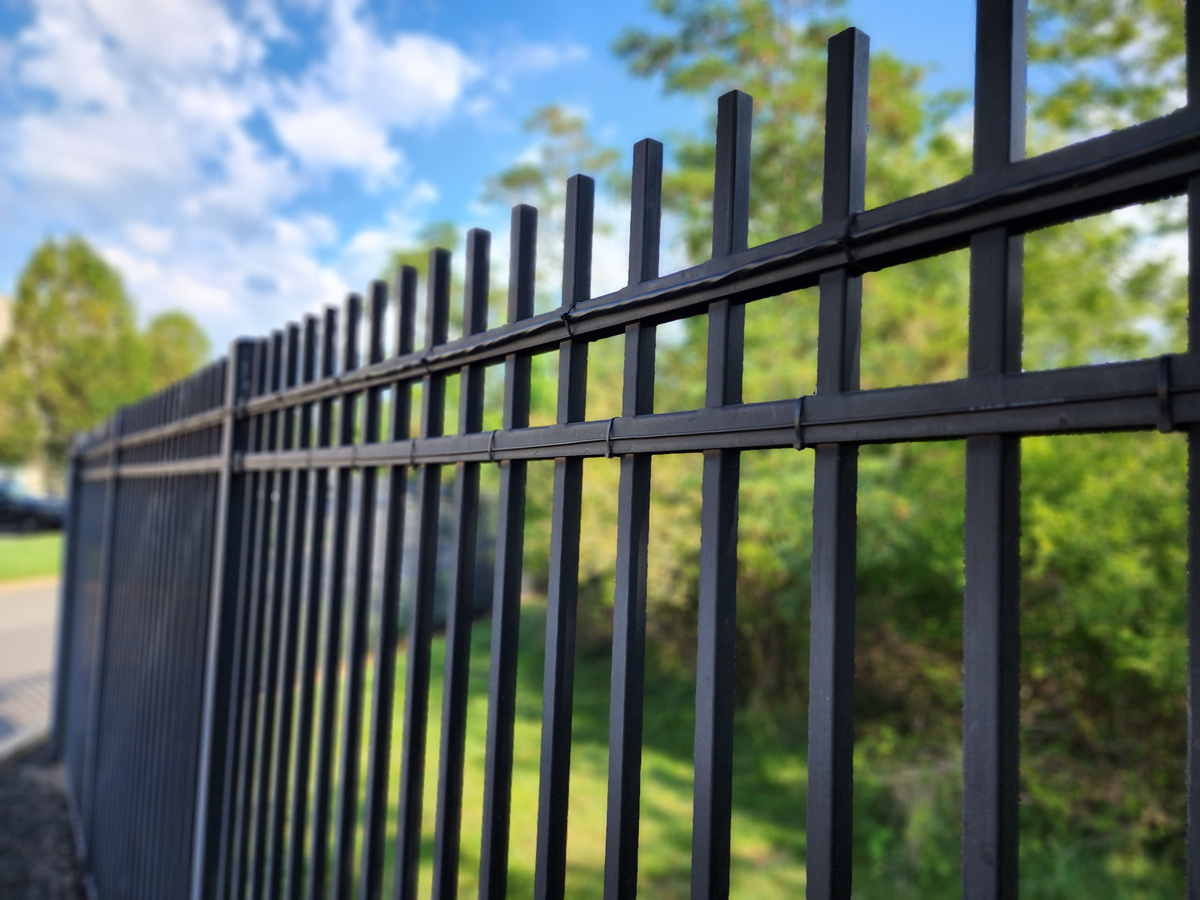

| Target fence types | Metal fence, palisade and ornamental, wrought iron, aluminum (rigid fences); combinable with crash-rated fencing |
| Max cable per processor | 600 m (2,000 ft) |
| Max cable per zone | 300 m (1,000 ft) |
| Zones per processor | 2 |
| Sensitivity adjustment | 22 levels per zone on board; 500 levels via software |
| Calibration | Self-calibrating |
| Zone arm/disarm | 8x via jumper |

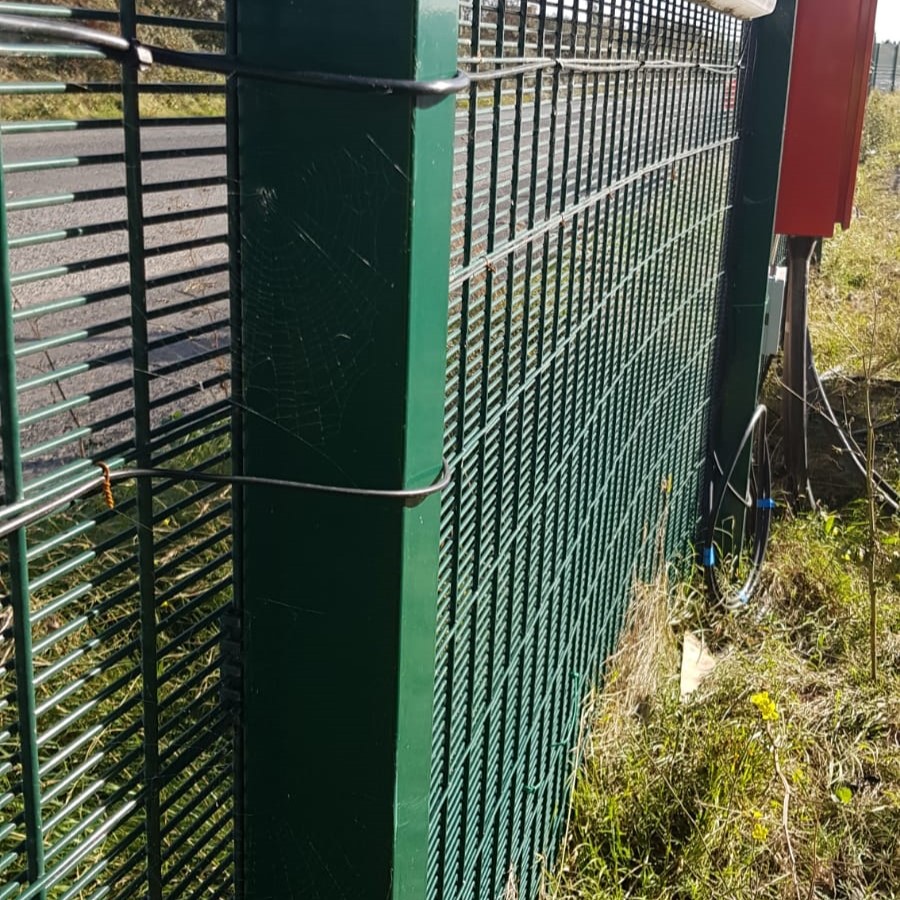

| Sensor cable | 3 mm outer diameter, black, UV-rated; attached directly to the fence without conduit |
| Cable spool lengths | 75 m / 152 m / 305 m (250 / 500 / 1,000 ft), pre-cut |

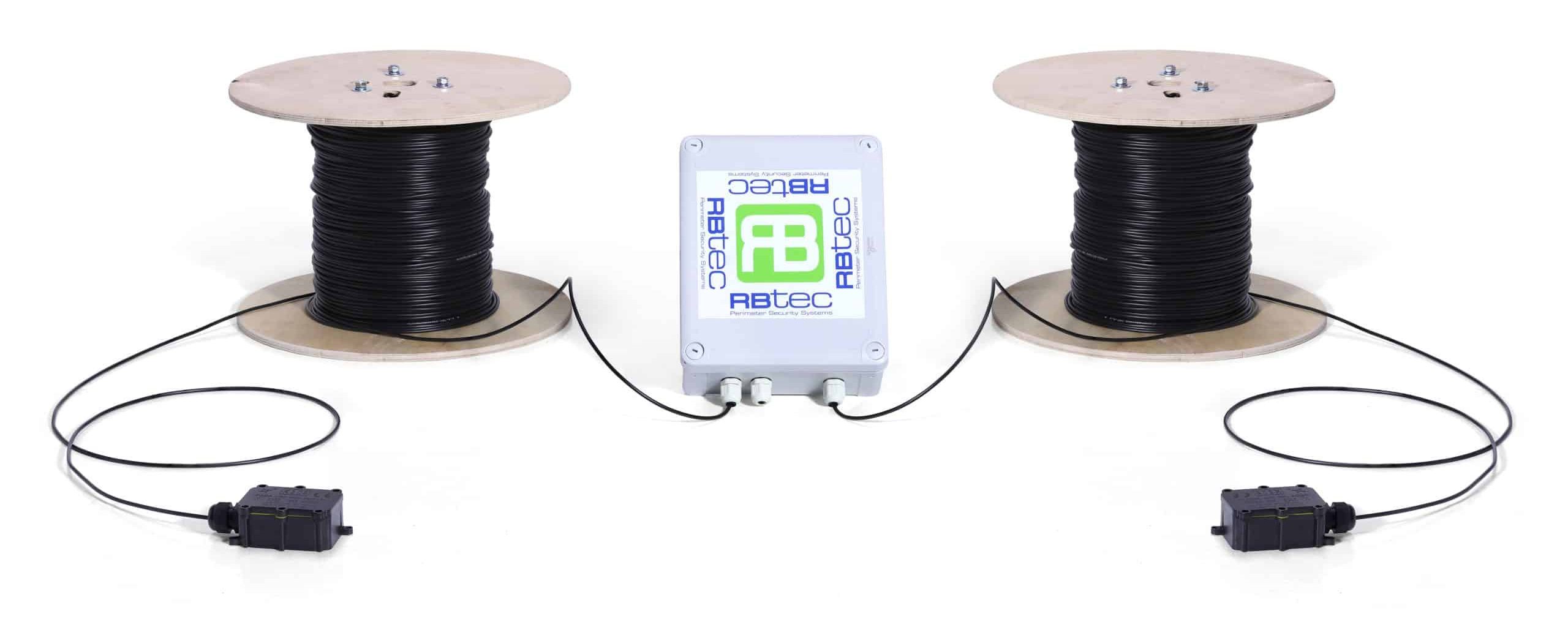

| Ready-to-install kits | 6 configurations, single or dual zone, 75-610 m (250-2,000 ft); each kit includes fence processor (LPU) + optional sensor cable + 2 EOLs |
| Kit part numbers | RB-MIC1Z250, RB-MIC2Z250, RB-MIC1Z500, RB-MIC2Z500, RB-MIC1Z1000, RB-MIC2Z1000 |
| Processor | LPU-402 (board RB-LPU402; complete kit with enclosure + 2 EOL: RB-ELC2ZKIT) |
| Alarm inputs | 2/4 MICALERT sensor cable inputs; 4 intrusion + line-monitored accessory inputs (magnets, contacts, microwaves, motion detectors); 1 tamper switch |
| Alarm outputs | 8 dry-contact relays, NO/NC, rated 1 A @ 12 VDC; plus 1x tamper switch relay and 1x power outage relay |
| Connectors | Sensor input 8x screw terminal (pair per zone); alarm output 8x screw terminal (pair per zone) |
| Communication to PC | USB-C; optional RS485 or IP |
| Lightning protection | 2-layer surge protection; gas discharge devices on all inputs/outputs and communication lines |
| Power | 12-24 VDC, 300 mA @ 12 VDC |
| Operating temperature | -40°C to +105°C |
| Humidity | Up to 98%, non-condensing |
| Enclosure | NEMA 4X, IP-66; 24 x 19.5 x 7.0 cm; 1 kg |
| Accessories | Stainless steel cable ties + installation tools (RB-RBTIES610), end-of-line termination (RB-RBMCTR), splice/extension unit (RB-RBMCTXT), gate connector (RB-GATECONN), sliding gate kit (RB-SLIDINGKIT) |
| Sensor cable warranty | 2 years |
Available variants.
Use cases.
- ›Palisade fence intrusion detection for utility substations
- ›Data center perimeter security
- ›Communication antenna site fence protection
- ›Gated community and industrial perimeter alarm
