Senstar OmniTrax
Covert buried coaxial-cable intrusion detection with +/-1 m localisation over 800 m per processor

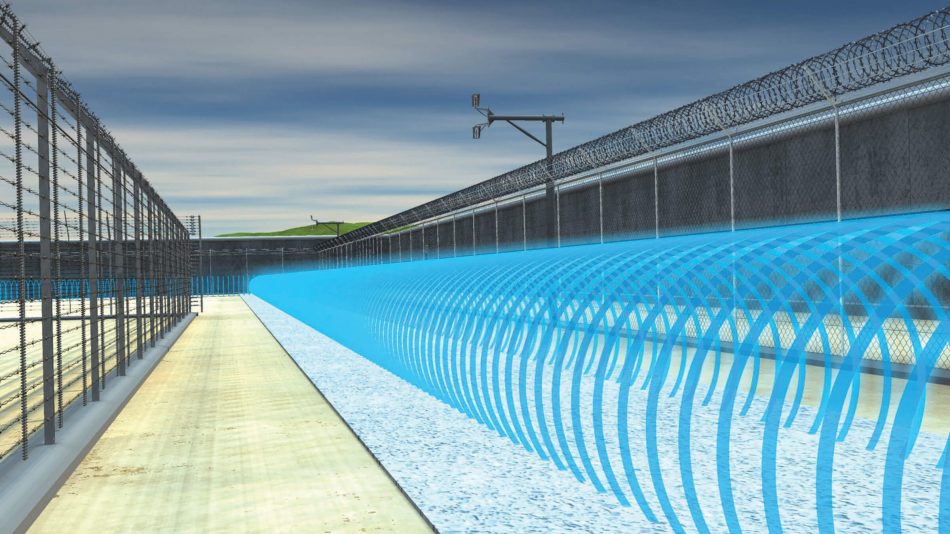

OmniTrax is Senstar's covert buried-cable perimeter intrusion detection sensor. Ported ('leaky') coaxial sensor cables buried in the ground create an invisible volumetric electromagnetic detection field, typically 1 m high and 3 m wide, that follows the terrain. Apertures in the transmit cable let RF energy couple to the parallel receive cable; a patented coded-pulse algorithm detects and locates intruders crossing the field to within +/-1 m over up to 800 m per processor, including multiple simultaneous intrusions, with up to 50 software-defined zones. Detection is based on an intruder's conductivity, size and speed: probability of detection for an upright 35 kg intruder moving between 5 cm/s and 8 m/s exceeds 99% (95% confidence), while objects under 10 kg are rejected at 95% confidence. Any attempt to tamper with the cables, processor or enclosure raises an alarm. Because the field is underground and invisible, OmniTrax offers the lowest vulnerability-to-defeat of any outdoor perimeter sensor and leaves site aesthetics unchanged. Operation is unaffected by vegetation and insensitive to wind, rain, snow, hail, sandstorms, fog, extreme temperatures, seismic vibration, acoustics and blowing debris, from -40 to +70 deg C - directly relevant to GCC desert and coastal sites. Cables direct-bury in most soils (23 cm deep), asphalt or concrete (6 cm slots) and carry both power and data with bidirectional redundancy after a cut; up to five processors can share one power supply. Two cable families cover different layouts: OC2 (300/400 m runs) and SC2 (50-200 m, narrow single-trench spacing). Calibration is by walk-test with Senstar's Windows-based UCM software, which levels sensitivity per meter and compensates for site variations. Alarms report via four on-board Form C relays or over the Silver Network (EIA-422, single/multi-mode fiber, or the sensor cables themselves), polled from both ends for redundant paths, with internal alarm queuing if connectivity drops. Network Manager conveys alarms to Senstar Symphony VMS, StarNet 2 SMS or third-party systems via a free SDK. NPSA-approved for UK government use; typical applications include airport perimeters, borders, military bases and correctional facilities.
Technical specifications.
| Sensor type | Buried ported ('leaky') coaxial cable RF sensor, volumetric, covert |
| Detection range per processor | up to 800 m |
| Location accuracy | +/-1 m |
| Detection field size (typical) | 1 m high x 3 m wide, terrain-following volumetric field |
| Detection zones | up to 50 software-defined zones per processor |
| Probability of detection | >99% (95% confidence) for upright 35 kg intruder moving 5 cm/s to 8 m/s |
| Small-object rejection | objects under 10 kg rejected, 95% statistical confidence |
| Sensitivity leveling | Per-meter precision leveling via UCM walk-test calibration; graded cable design for uniform sensitivity |

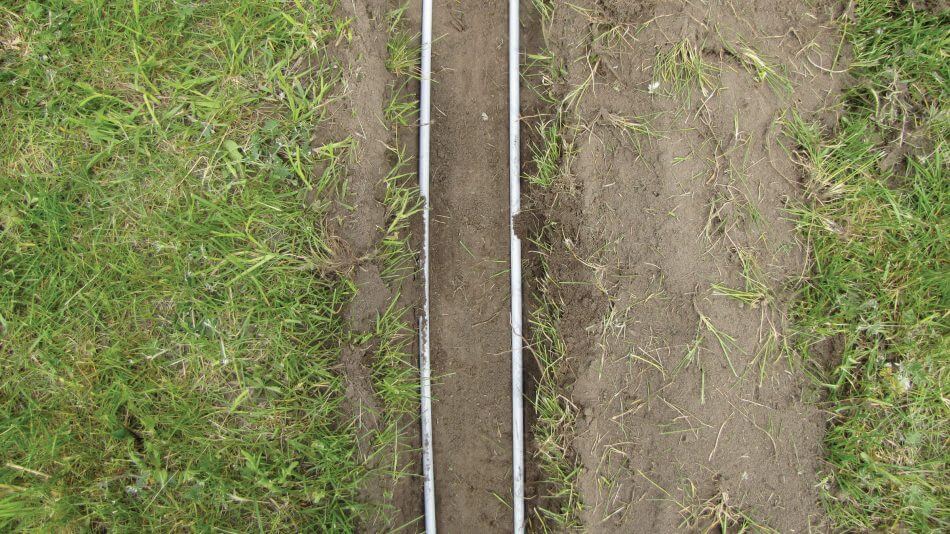

| Burial depth | 23 cm in soil; 6 cm slot depth in concrete; direct-buried in most soils, asphalt or concrete |
| Cable spacing | 10 cm minimum to 2 m maximum |
| Sensor cable options | OC2: separate Tx/Rx, 300 m or 400 m lengths, 12.07 mm jacket; SC2: separate Tx/Rx, 50 m increments to 200 m, 8.0 mm jacket, single-trench narrow spacing |
| Lead-in cable | 20 m (OC2), contiguous graded design |
| Environmental immunity | Unaffected by vegetation; insensitive to wind, rain, snow, hail, sandstorms, fog, extreme temperatures, seismic vibration, acoustics, magnetic effects, blowing debris |
| Operating temperature | -40 to +70 deg C |
| Humidity | 95% non-condensing |
| Input power | 12 to 48 VDC, less than 9 W; up to 5 processors may share one power supply |
| Backup battery | Optional internal 5 Ah |
| Power/data over sensor cable | Yes, bidirectional with full redundancy after a cable cut |
| Lightning protection | Tranzorb and non-radioactive gas discharge devices on all I/O ports; optional lightning protection kit (A4KT1000) |

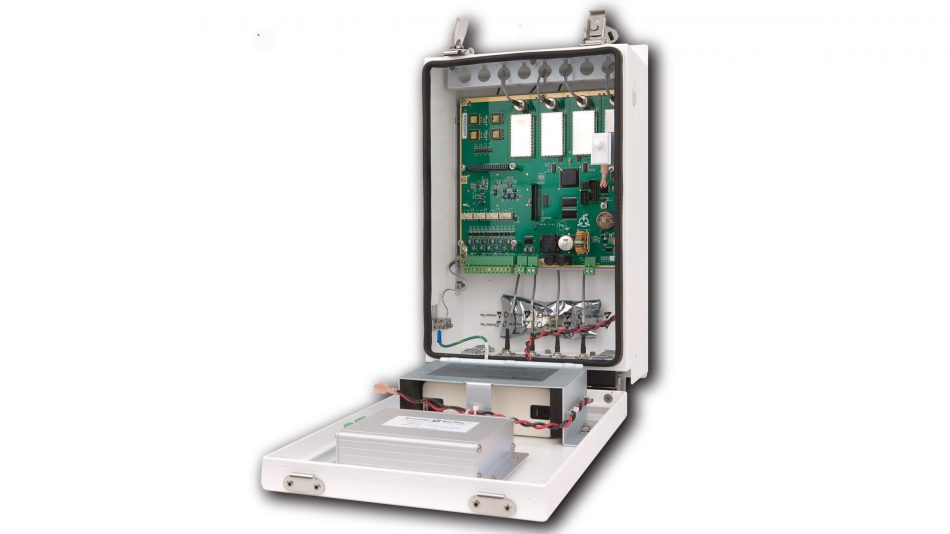

| Enclosure | Painted aluminum CSA/UL Type 4X with tamper switch; optional IP33 telecom-style enclosure 98.4 x 42.5 x 27.3 cm for above-ground field mounting |
| Processor dimensions / weight | 40 x 23.5 x 16.5 cm / 4.9 kg (without optional battery) |
| On-board I/O | 4 Form C relay outputs (1.0 A at 30 VDC, activation programmable 0.125-10 s), 2 self-test/dry-contact inputs with programmable supervision |
| Optional I/O cards | 8-relay output card or 8-input universal card (one per processor, in addition to comms card) |
| Communications | EIA-422, single-mode fiber (up to 10 km, 1310 nm ST), multi-mode fiber (up to 2.2 km, 820 nm ST), or over the sensor cables; dual-end polling for redundant data paths; internal alarm queuing on network loss |
| Sensor networking | Silver Network compatible with FlexZone, Senstar LM100, UltraWave, FP400 and XField sensors |
| Configuration | Windows-based Universal Configuration Module (UCM) via USB or remotely over network, with real-time plot mode |
| Supervision / self-test | Sensor cable monitored for opens, shorts and grounding; enclosure tamper switch; critical processor parameter monitoring |
| Integration | Network Manager to Senstar Symphony VMS, StarNet 2 SMS or third-party SMS/VMS/PSIM via free SDK (API docs, simulator, sample code); customizable ASCII output |
Available variants.
Certifications.
Use cases.
- ›Covert airport perimeter intrusion detection
- ›Border and military base buried sensor lines
- ›Correctional facility sterile zone detection
- ›Sites with strict aesthetic or heritage requirements
