Senstar UltraWave
Digital bistatic K-band microwave sensor - stackable 5-200 m volumetric detection zones for gates and perimeter gap-fill

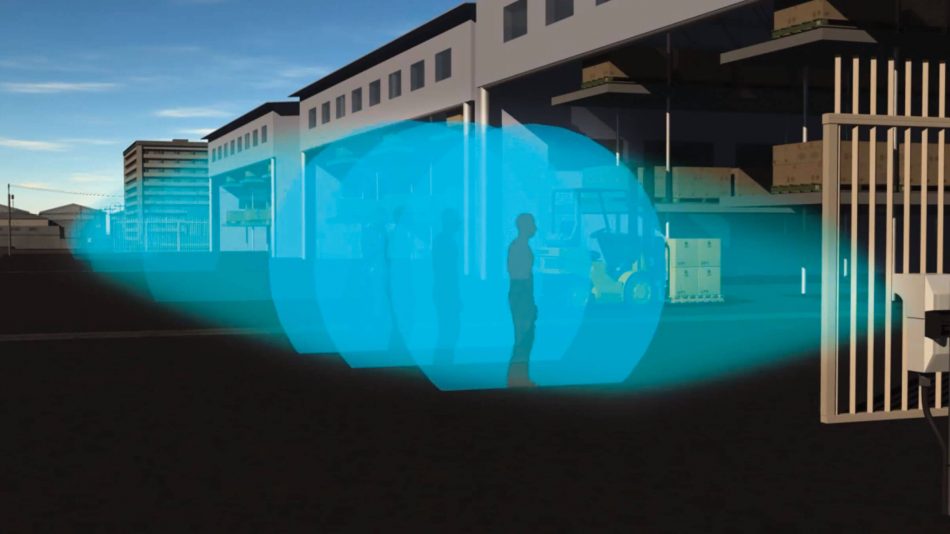

UltraWave is Senstar's fully digital bistatic microwave intrusion detection sensor. A transmitter projects an invisible pattern of K-band microwave energy (24 GHz, 10 field-selectable channels) toward a paired receiver mounted up to 200 m away, forming a cylindrical volumetric detection zone; DSP algorithms distinguish the signatures of intruders walking (5-200 m), crawling (5-150 m) or performing a commando roll (5-100 m) from environmental effects, with a detection rate greater than 99% when properly installed. Automatic Gain Control compensates for path-loss changes from Tx-Rx separation, surroundings and weather, and a PLL-controlled VCO keeps the operating frequency ultra-stable over temperature and equipment aging. Detection is reliable night or day regardless of weather, and the IP65-rated, conformally coated units operate from -40 to +70 deg C - suited to exposed GCC airfield and border environments. Units stack on a common mounting post to increase detection-zone height, and the 10 channels let multiple pairs operate in close proximity without interference, enabling gap-free perimeters, gate and sally-port protection, or gap-fill alongside fence and buried sensors. Anti-spoofing is built in: each receiver recognises only its paired transmitter and reports signal loss or jamming immediately, while Tx-Rx communication rides on the microwave signal itself, eliminating data wiring to the transmitter. Power draw is 1.5 W (Tx) and 2.6 W (Rx with comms card) from 12-48 VDC or PoE, with four Form C relays for local operation and optional EIA-422, fiber or Ethernet cards for networking. UltraWave shares Silver Network wiring with OmniTrax, FlexZone and XField sensors (Crossfire networks supported for MPS-4100 backward compatibility), with dual-end polling for redundant data paths and Network Manager integration to StarNet 2 or third-party security management systems. The Windows-based UCM calculates optimum mounting height from separation and stacking configuration and supports remote diagnostics.
Technical specifications.
| Sensor type | Volumetric, fully digital bistatic microwave (paired transmitter and receiver, post- or wall-mounted, cylindrical detection zone) |
| Detection range | Walking target 5-200 m; crawling target 5-150 m; commando roll 5-100 m |
| Detection rate | Greater than 99% when properly installed |
| Operating frequency | 24.075-24.175 GHz band, 10 field-selectable channels, 24 dBm output (FCC); or 24.150-24.250 GHz harmonized band, 10 channels, 20 dBm output (ETSI/CE) |
| Signal processing | All-digital DSP discriminates intruder signatures (walking, running, crawling) from environmental effects; Automatic Gain Control compensates for Tx-Rx separation, conditions and weather; PLL-controlled VCO for ultra-stable frequency |
| Anti-spoofing | Receiver recognises only its paired transmitter; signal loss and jamming attempts reported; Tx-Rx communication via modulation of the microwave signal gives full transmitter supervision with no data wiring to the transmitter |

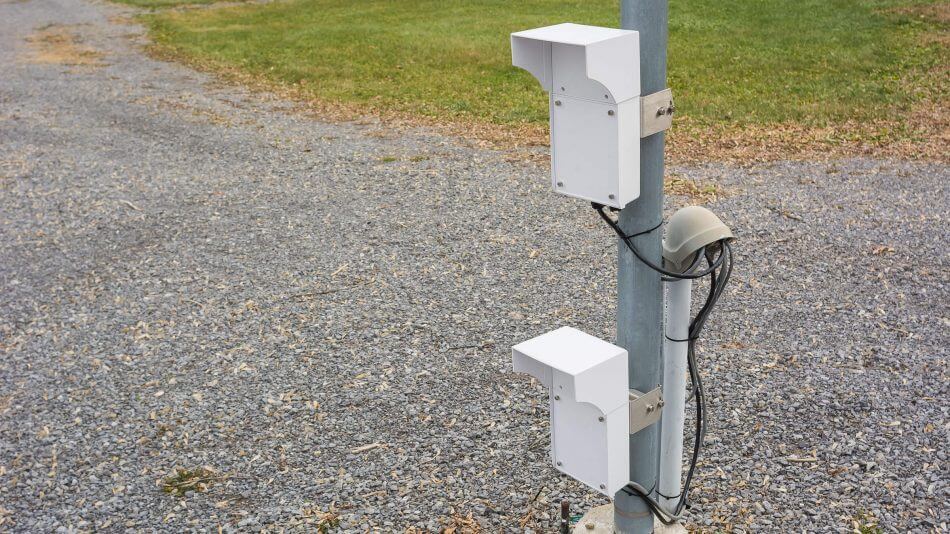

| Stackable | Yes - multiple Tx/Rx pairs stack on a common post to increase detection zone height; 10 channels allow adjacent/overlapping zones without interference |
| Clear zone requirement | Total width 4% of Tx-Rx separation, free of tall grass, vegetation and obstacles |
| Operating temperature | -40 to +70 deg C |
| Humidity | 0 to 95% non-condensing; conformal coated PCBs |
| Ingress rating | IP65 |
| Power | Transmitter 1.5 W; receiver with communications card 2.6 W; 12 to 48 VDC; PoE via optional Ethernet card; Tranzorb and gas-discharge protection on all I/O including power |
| Unit dimensions / weight | 31 x 16 x 8 cm / 0.9 kg each (Tx and Rx); 3.63 kg shipping weight per pair; high-impact ABS housing, marine white |

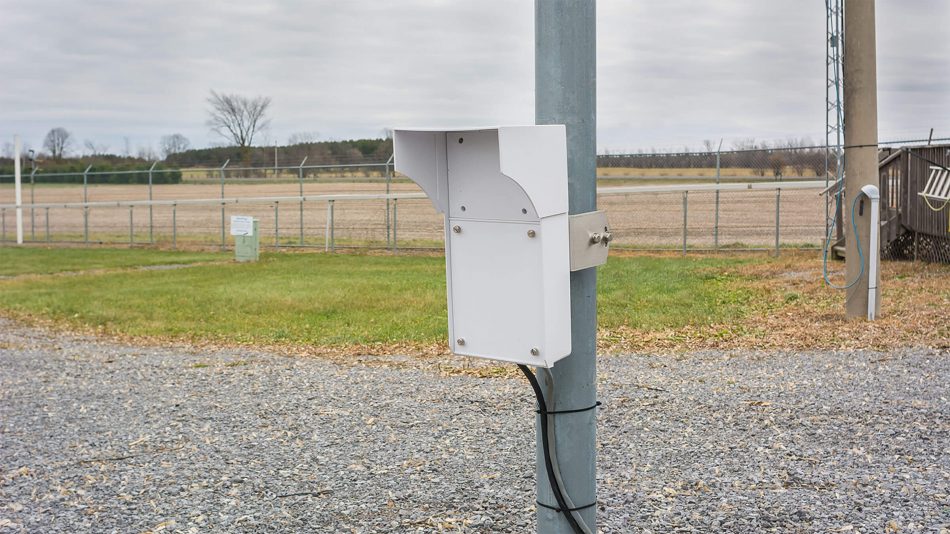

| Mounting | Pole-mount kit for posts 4.8-11.4 cm diameter included; wall mounting supported; two cable ports with glands, fits 13 mm conduit |
| On-board I/O | 4 Form C relay outputs (2 per Tx and Rx), 1.0 A at 30 VDC, assignable (alarm, tamper, power fail, fail-safe), activation programmable 0.125-10 s; auxiliary input on Rx |
| Communications | Optional cards: EIA-422 (up to 1.2 km), multi-mode fiber (up to 2.2 km, 820 nm ST), single-mode fiber (up to 10 km, 1310 nm ST), Ethernet 10/100BASE-TX with PoE; Silver Network shared with OmniTrax, FlexZone and XField; Crossfire network backward-compatible with MPS-4100; dual-end polled redundant data paths |
| Configuration | Windows-based UCM via USB or network; calculates optimum mounting height from Tx-Rx separation and stacking configuration; remote diagnostics over sensor network |
| Integration | Network Manager Service to Senstar StarNet 2 or third-party SMS |
Available variants.
Certifications.
Use cases.
- ›Airport gate and sally port microwave detection
- ›Perimeter gap-fill between fence sensor zones
- ›Non-fenced apron and open-area intrusion detection
- ›All-weather border checkpoint protection
